Automated Nucleic
Acid Extaction

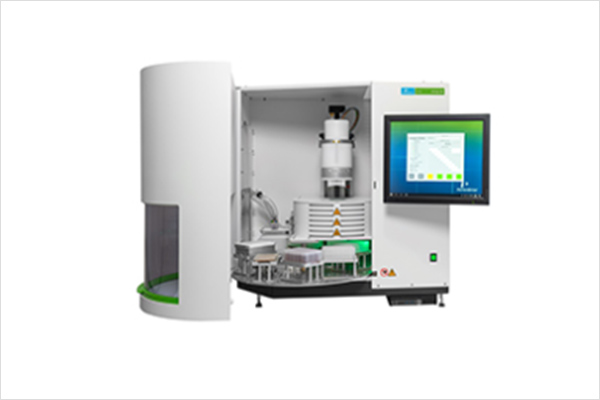

1. Large Volume Nucleic Acid Extraction
   (대용량 핵산 자동추출기)

Input sample volume: ~10ml, 96samples/run

  • RNA and DNA from pathogens
  • RNA and DNA from blood
  • RNA and DNA from saliva
  • cfDNA from plasma
Input sample volume: ~10ml, 96samples/run
Product Name Cat. No. No. of Samples Sample Volumes Tubes/Plates Processing Time

chemagicTM 360
12 Rod Head Set

 CMG-371 1-12 0.5ml-10ml 50ml tubes e.g for 10ml
blood~55min

chemagicTM 360
24 Rod Head Set

 CMG-376 1-24 200㎕-4ml 24 well plates XL e.g.for 4ml
blood~55min

chemagicTM 360
96 Rod Head Set

 CMG-370 1-96 10㎕-400㎕ 96 well plates e.g.for 400㎕
blood~55min
of for 96 swabs
~31min

2. Nucleic Acid Automation

Automation system(~30min/run)

  • RNA and DNA from pathogens
  • RNA and DNA from blood
  • RNA and DNA from saliva
  • cfDNA from plasma

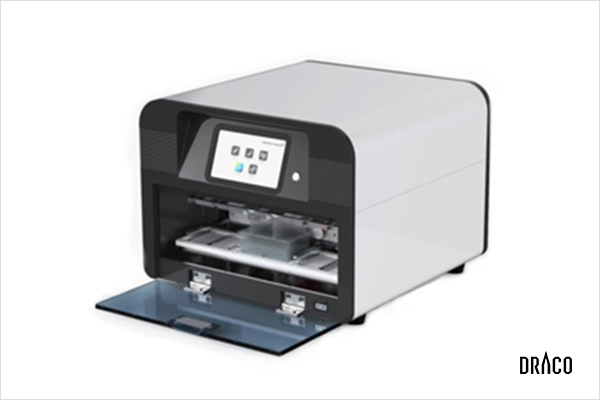

Automation System
Automation System
Sample Up to 96 samples at once
Running time 30 min
Sample volume ~200uL
Elution vollume 90uL
User interface 7” full touch screen
Safety UV Sterilization
Dimension 486mm(W) x 356mm (H) x 505mm (D)
Weight 38kg
Opering condition 15~35℃
Mains power supply 220/230V ~ 50/60 Hz, 260W
Operation humidity 20~80%
Heting block 20~80℃
Storage conditions 5~35℃
UV lamp UVC LED Module(265~278nm), DC 24V, 17W
Protocol improt Using PC or LAN Cable
